2 RotoCrushers® to Meet Your Needs

rotocrusherDlogo
rotologo

Combination - Stone Crusher, Wood Mulcher and Deep Tiller.

For Felling & Mulching Trees / Brush & Stumps and Crushing Rocks & Soil.

rotocrusherDlogo

RotoCrusher® D can be used for:

  • Stone and rock crushing.
  • Deep till mulcher.
  • Removal of stumps
  • Road Conditioning Stabilizer.
  • Mix and re-blend gravel roads
  • New dirt road building and re-juvenation.

Blending Fines.

  • Rehabilitation and reclaiming of asphalt and asphalt stripper
  • Full Depth re-claimer.

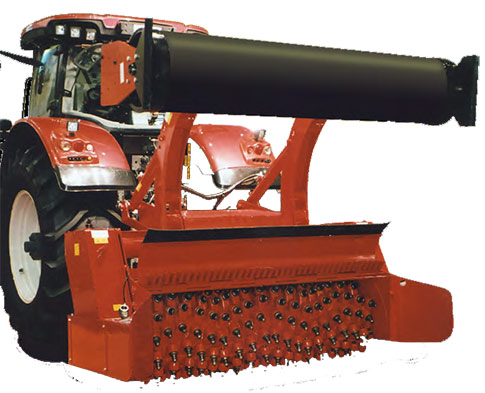

rotodeepmain

Shown with optional compacting roller.

BONUS . . .

gearboxes

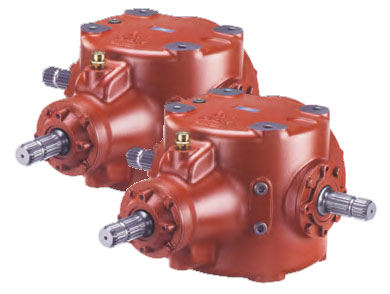

Each RotoCrusher® D ships with an extra gearbox which allows you the choice of 340rpm or 600rpm rotor speeds.

roto-levelingblade

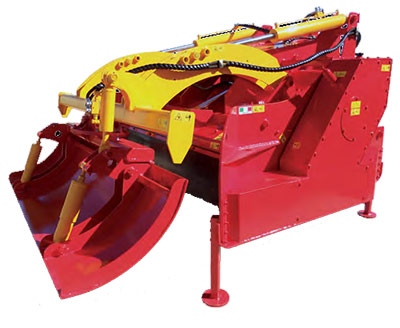

Shown with optional hydraulic levelling blade.

Can mulch wood up to 30cm/12″ dia. and crush stones up to 25cm/10″.

rotobefore
rotoafter

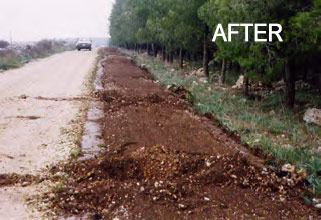

Rejuvenate gravel roads and shoulders without trucking in new material.



RotoCrusher® in Rock,  Rock and Stone Crusher



RotoCrusher® for rejuvenating gravel and dirt roads



RotoCrusher® Super Mulcher™ on a Fendt tractor

rotopic1

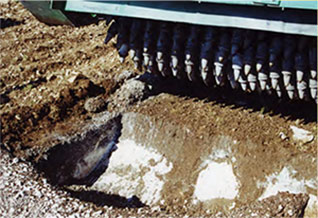

Tungsten Carbide ‘BlonXXTM’ tips arranged in a unique spiral pattern for maximum crushing efficiency.

rotobefore2

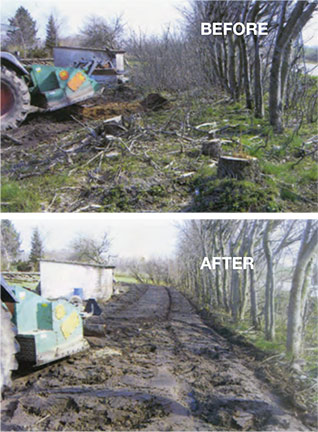

Reclaim soil from unused orchards and vineyards.

Features & Benefits of the
RotoCrusher® D:

  • Each RotoCrusher® D ships with an extra Bondioli & Pavesi gearbox which allows you the option of 340rpm or 600rpm rotor speeds. Slower rotor speeds are more effective for crushing rocks. Faster rotor speeds are better for stumps and wood.
  • The RotoCrusher® D is the ideal machine for opening up new land, removing stumps, crushing stones, removing old orchards or vineyards, mulching up slash from forestry operations, clearing land for pipelines, firebreaks etc.
  • The RotoCrusher® D can mulch wood and stumps up to 30cm/12″ dia., crush stones up to 25cm/10″ and work everything into the soil to a depth of 20cm/8″ on the first pass, and up to 40cm/16″ deep on the second pass.
  • The rotor consists of Tungsten Carbide ‘BlonXXTM’ tips arranged in a unique spiral pattern that work against a hydraulic adjustable serrated steel ‘grate’ to reduce to mulch virtually any material that it encounters.
  • Options includes a hydraulically controlled full length, curved levelling blade (or roller) / tree guard frame that provides a dual function. When positioned up it acts as a guard frame / tree pusher and when positioned down it functions as a land levelling / compacting roller that also controls the depth the Roto Crusher will work into the ground.
  • RotoCrusher® D is available in widths from 1.2 m to 2.2 m (3'11" to 7'2") requiring tractors with 85 hp to 400 hp. CVT tractor recommended.

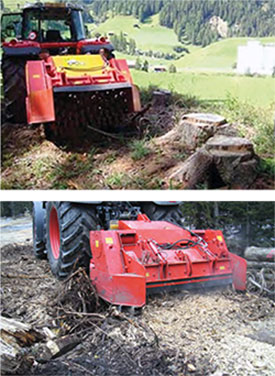

Built for crushing fixed
rocks, stones, stumps and
forestry use.

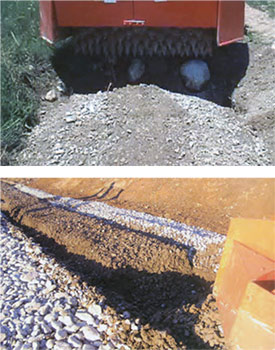

roto-2a
roto-2b
limestone1
limestone2
limestone3

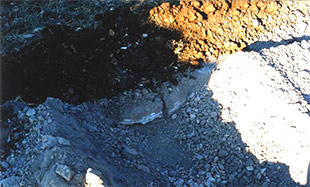

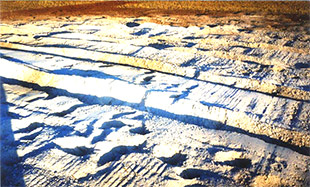

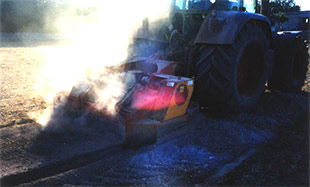

RotoCrusher® removing limestone ridge, 16 inches deep

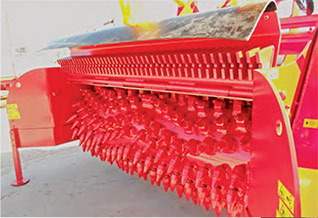

hardox

Adjustable grate made of HARDOX® steel is built in to the underside of rear door. Allows operator to determine the size of the finished product.

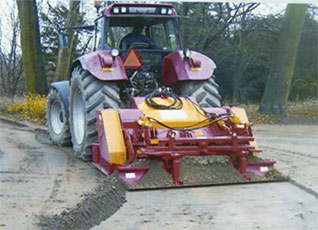

picdirtandgravel
roto-secondmain

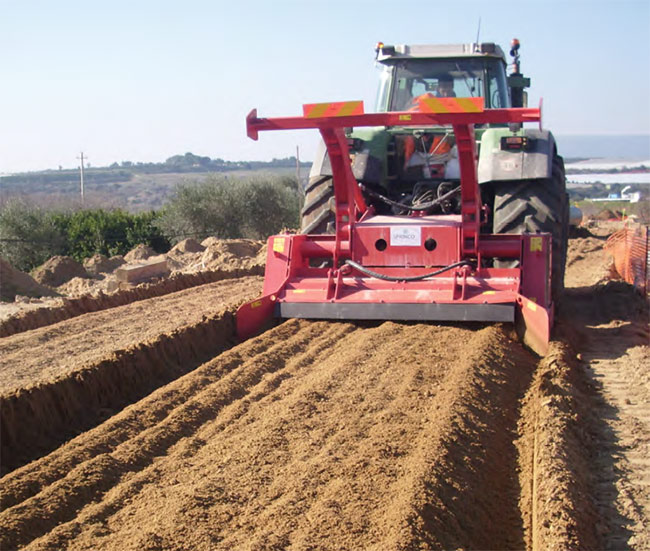

Rejuvenate dirt and gravel roads at a fraction of the cost.

Maximize farmland by reclaiming rocky, overgrown and previously unusable areas.

Blonxx Pics

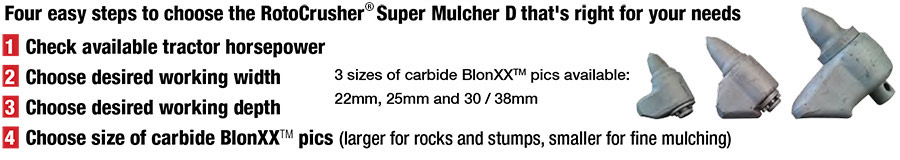

pickspic
blonxxshaft

When operating a rock crusher today, the largest cost is the wear parts / consumables. Over the life of the rock crusher you may spend more on wear parts than you did for the whole machine.

Unlike some competing rock crushers that use expensive square carbide hammers originaly designed for forestry mulchers, the Roto Crusher Super Mulcher "Deep" uses Blonxx tungsten carbide pics that are readily available from several sources, are long lasting and economical. Blonxx pics were developed decades ago for use in the underground mining industry, and are widely used today in rock mining and on asphalt & concrete stripping machines.

Blonx pics are the most economical type of wear parts for rock crushers at present.

specification-table

Spec's listed are for a machine that has 25mm "medium" carbide BlonXXTM tips. *Double side transmission.

* The weight of the machines is approximate, it refers to the standard version with any options and it may vary.
The information and images contained in this document are to be considered reference values. The St. George Company reserves the
right to make changes without notification.
RotoCrusher®™ and SGC attachments are registered trademarks of The St. George Company. © The St. George Company, 2016
Spec's


rotologo

For Felling & Mulching Trees/Brush & Stumps and Crushing Rocks & Soil.

rotomain
rotosecondmain

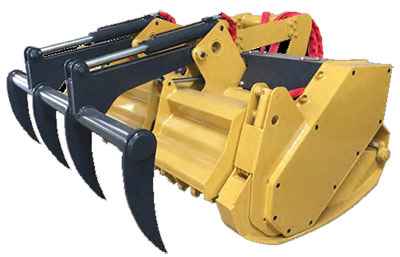

Shown with optional hydraulic tree guard/brush rake.

Optional: Full Length compacting hydraulic rear roller.

BONUS . . .

gearboxes

Each RotoCrusher® Super MulcherTM ships with an extra gearbox which allows you the choice of 600rpm or 1425rpm rotor speeds.

roto-extra

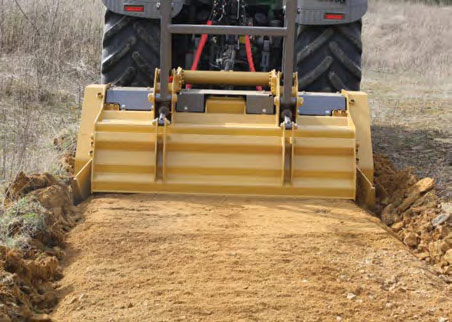

Can fell and mulch standing trees up to 30cm/12″ dia. & crush stones up to 25cm/10″ dia.

rotobefore

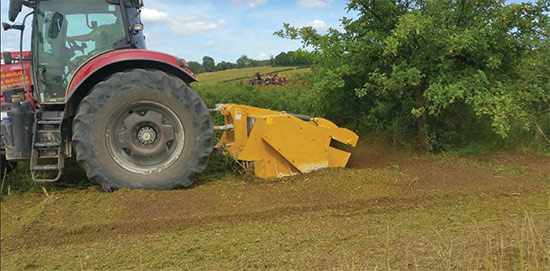

The RotoCrusher® Super MulcherTM is the ideal machine for opening up new land, removing stumps, crushing stones, removing old orchards or vineyards, mulching up slash

from forestry operations, clearing land for

pipelines, firebreaks etc

rotoleft3
rotoafter

Rejuvenate gravel roads and shoulders without trucking in new material.

roto-leftside
rotoleft2

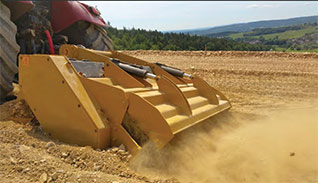

Built for clearing land and
conditioning soil in one easy step.

  • Each RotoCrusher® Super MulcherTM ships with an extra Bondioli & Pavesi 2200 gearbox which allows you the option of 600rpm or 1100rpm rotor speeds. Slower rotor speeds are more effective for crushing rocks and grinding stumps below grade. Faster rotor speeds are better for felling trees and mulching above grade.
  • Hydraulic leveling system to raise and lower rotor; low rotor level for below grade work and high rotor level for above grade mulching

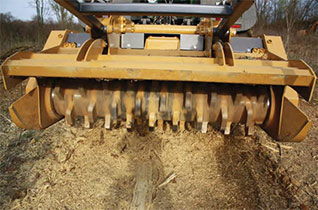

  • The rotor consists of Tungsten Carbide hammers arranged in a unique spiral pattern that work against serrated HARDOX® 450 counter knives which enables material to be broken down. Dual side transmission with heavy duty toothed polybelts.
  • Options include a hydraulically controlled full length, tree guard/brush rake.
  • RotoCrusher® Super MulcherTM is available in two widths 220 cm and 240 cm (7'3" to 7'11") requiring tractors with 220 hp to 400 hp.
  • The RotoCrusher® Super MulcherTM can mulch wood and stumps up to 30cm/12″ dia., crush stones up to 25cm/10″.

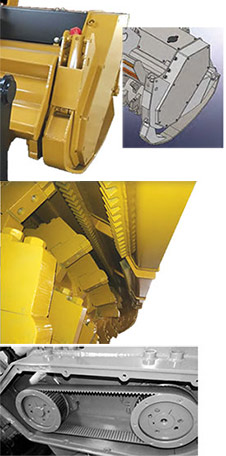

rotocrusherview

The RotoCrusher® Super MulcherTM can be used for:

  • Crushing rocks & soil and mulching wood & brush
  • Reclaiming uncultivatable stony & rocky lands and brush areas
  • Felling standing trees up to 30cm / 12" in dia.
  • Grinding stumps
  • Preparing land for the development of ski slopes, and cross country ski trails
  • Clearing oil field right of ways
  • Reclaiming soil for vineyards, orchards, vegetable plantations
roto-carbidetips

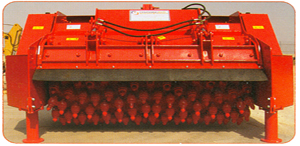

rotocrusher1

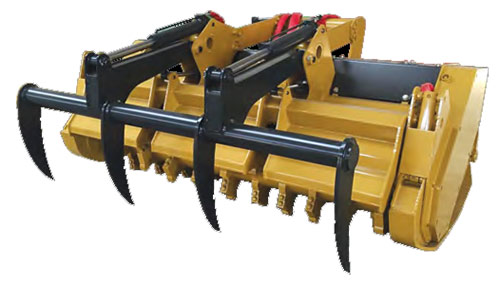

Two different carbide tipped hammers available. A: for stone. B: for wood

supermulchertable

Optional: Full Length compacting hydraulic rear roller.
