SEVENTM Roadside Mower / Mulchers

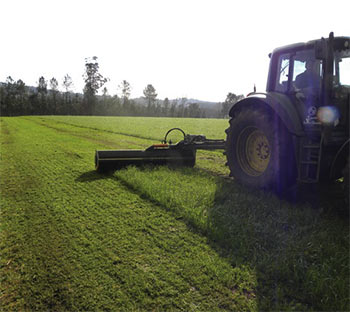

Heavy duty mowers designed for the most demanding ditch and bank mowing.

Mow at an angle of 65˚ down and 90˚ up, as well as mow flat surfaces at high speed.

These Roadside mowers can handle the tough jobs required of a roadside offset mower.

FEATURES

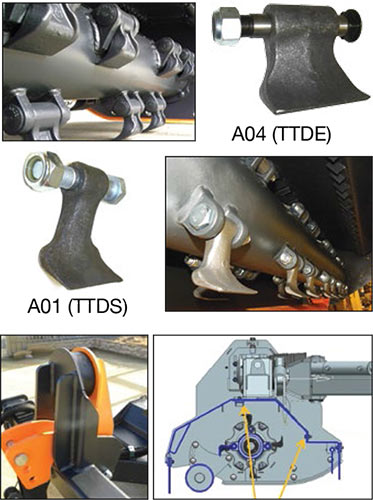

Forged steel hammers with large diameter machined bolts, the largest in the industry.

A01 hammer: 640 g (1.4 lb), 20mm (3/4”) dia bolt (TTDS) .
A04 hammer: 2,268 g (5 lb), 27mm (1-1/16”) dia bolt (TTDE).
A04 also features lock in place square head BoltopTM system.

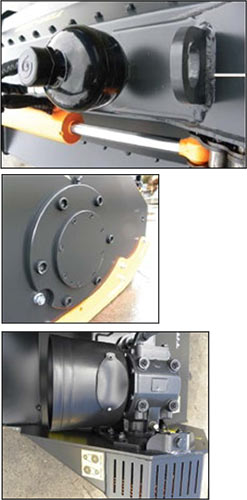

Optional adjustable pneumatic system shock absorber in lift cylinder.
Floating third point hitch.
External mounted rotor bearings; the largest in the industry.
Replaceable bolt on “Counter Blades”
on the underside of the hood made of HARDOX® 450 steel to ensure long life and a fine mulched finished product.

540 or 1000 RPM PTO drive.

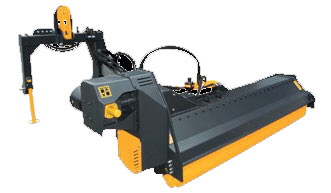

Model TTDS for tractors 65-100 Horsepower

Model TTDE for tractors 100-200 Horsepower

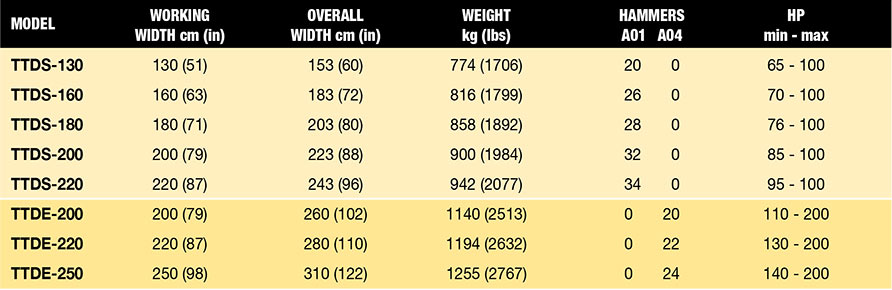

Eight mowers to choose from

The weight of the machines is approximate, it refers to the standard version with any options and it may vary.
The information and images contained in this document are to be considered reference values.
The St. George Company reserves the right to make changes without notification.
SEVEN™ is a registered trademark of The St. George Company. © The St. George Company, 2013
