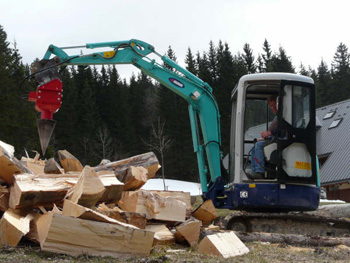

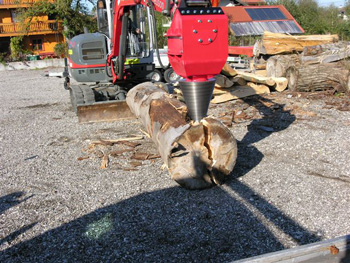

Conical timber splitter - excavator splitter M1-M5

Our patented log splitter is available in 15 models with one to five motors and compatible with almost any machine with a hydraulic connection (tractors, (mini) excavators, compact utility loader (Hof-trac©), wood cranes, hay loaders, …). Because of its extremely robust and compact build it has developed into an exceptionally useful, reliable and indispensable helper for working with timber. LASCO wood splitter The auger is an accessory to our splitter. The uninterruptedly graduated drilling diameter ranges from 15.2 cm to 61 cm. The auger is fitted with shovel-tines and a double screw for extremely hard ground to a maximal depth of 245.9 cm. Also available with a wood gripper and rotator, the latter being electrically operated!

Model	Weight	Size (cm)	Logs Metre / Diameter	Hydraulic
Model	Weight	Size (cm)	Logs Metre / Diameter	Quantity	Pressure
SEVEN Splitter M1
Splitter M1 - 4.0 K	135	120x80x60	1-2m / 90cm	30L and more	180-240 bar

SEVEN Splitter M2
Splitter M2 - 4.0 K	175	120x80x60	1-4m / 100cm	45L and more	180-240 bar
Splitter M2 - 4.0 S	270	120x80x75	1-4m / 130cm	55L and more	200-250 bar

SEVEN Splitter M3
Splitter M3 - 4.0 / 4.0 M	295	120x80x75	1-5m / 110cm	100L and more	200-250 bar
Splitter M3 - 4.0 / 4.0 S	400	120x80x80	1-6m / 160cm	100L and more	200-250 bar

SEVEN Splitter M5
Splitter M5 - 4.0 S	600	120x80x85	1-8m / 200cm	170L and more	200-250 bar

* all S Modell have the big Cone from 70cm x 50cm

* all K and M Modell have the standart Cone from 50cm x 30 cm

Use:

Splitting tree trunks
Processing of firewood
The cone gets every trunk in the right position
For use on loaders, tractors and wood cranes

The auger is an accessory to our splitter. The uninterruptedly graduated drilling diameter ranges from 15.2 cm to 61 cm. The auger is fitted with shovel-tines and a double screw for extremely hard ground to a maximal depth of 245.9 cm.
