The hydraulic magnet is a combination of a scrap handling magnet with power supply installed in a rugged case on the magnet. A suitable hydraulic circuit, in terms of flow and pressure (and return line) is connected to the magnet. Most often a bucket / hammer or auxiliary circuit is readily available on the boom or stick. No electric line goes to the magnet and there is no installation required in the machine. Breaking the hydraulic flow through the valve begins an automatic drop circuit through electronic circuitry located within the enclosure.
The advantage of the system is that almost no installation is required on the machine, with no separate electric controls and switchgear. The magnet with power unit can be very quickly disconnected freeing up the machine for other duty – and / or moved to another machine. A single system could then be quickly available for different users and sites within the company. Only a quick hydraulic connection is required. For companies with a fleet of machines working on various jobs and perhaps different locations, and do not wish or require a dedicated installation, the hydraulic magnet offers a great deal of flexibility and efficiency. For example, companies in the rental industry, demolition and specialty contracting firms, transfer stations, railways and ports who may have a limited requirement for a magnet will find this new product ideal for their operations.
EASY AND QUICK MOUNTING!
Quick coupling with chain or quick coupling plate direct to boom. The oil flow need is very small and does not effect other hydraulic operations. The hydraulic magnet has own oil flow and pressure limiter valves so it can be used on any machine. Hydraulic quick couplings make mounting much faster and easier.

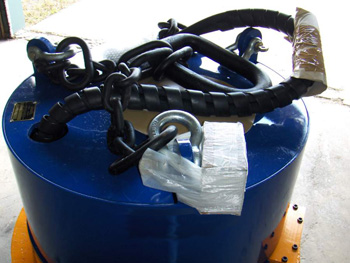

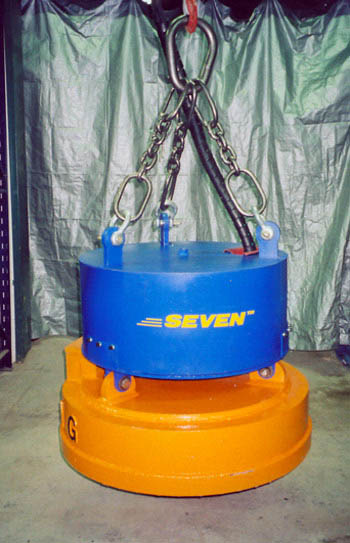

For connection to a suitable hydraulic circuit - NO electric connection. Supplied with CANMAG 36” Circular Scrap Handling Magnet - 230 volts DC / 19 amps and DYNASET CMAG system – requires oil flow of 9 GPM @3050 PSI (32 LPM 180 BAR) with automatic demagnetization circuit. Generator housed in steel shell secured to magnet case with lifting lugs and chain suspension. Supplied with dual hoses in reinforced protective sleeve and quick disconnects.
System weight: Approx 2000 lbs / 907 kgs
For connection to a suitable hydraulic circuit - NO electric connection Supplied with CANMAG 40” Circular Scrap Handling Magnet - 230 volts DC / 34 amps and DYNASET CMAG system – requires oil flow of 14-15 GPM @3050 PSI (54 LPM 180 BAR) with automatic demagnetization circuit. Generator housed in steel shell secured to magnet case with lifting lugs and chain suspension. Supplied with dual hoses in reinforced protective sleeve and quick disconnects. System weight: Approx 2900 lbs / 1318 kgs
For connection to a suitable hydraulic circuit - NO electric connection Supplied with CANMAG 45” Circular Scrap Handling Magnet - 230 volts DC / 34 amps and DYNASET CMAG system – requires oil flow of 14-15 GPM @3050 PSI (54 LPM 180 BAR) with automatic demagnetization circuit. Generator housed in steel shell secured to magnet case with lifting lugs and chain suspension. Supplied with dual hoses in reinforced protective sleeve and quick disconnects. System weight: Approx 2750 lbs / 1247 kgs
For connection to a suitable hydraulic circuit - NO electric connection Supplied with CANMAG 48” Circular Scrap Handling Magnet - 230 volts DC / 40 amps and DYNASET CMAG system – requires oil flow of 14-15 GPM @3050 PSI (54 LPM 180 BAR) with automatic demagnetization circuit. Generator housed in steel shell secured to magnet case with lifting lugs and chain suspension. Supplied with dual hoses in reinforced protective sleeve and quick disconnects. System weight: Approx 3600 lbs / 1633 kgs
MODEL |
HMAG 36 |
HMAG 40 |
HMAG 46 |
HMAG 52 |
DIAMETER |
36 inches / 914 mm |
40 inches / 1016 mm |
46 inches / 1168 mm |
52 inches / 1320 mm |
WEIGHT |
2100 lbs / 954 kgs |
2900 lbs / 1318 kgs |
3300 lbs / 1500 kgs |
3700 lbs / 1682 kgs |
COIL POWER |
2.8 kW 220 VDC |
4.5 kW 220 VDC |
4.5 kW 220 VDC |
8.3 kW 220 VDC |
GEN. POWER |
6 kW 220 VDC |
10 kW 220 VDC |
10 kW 220 VDC |
12 kW 220 VDC |
HYDRAULIC OIL FLOW |
9 GPM @3050 PSI (32 LPM 180 BAR) |
14-15 GPM @3050 PSI(54 LPM 180 BAR) |
14-15 GPM @3050 PSI(54 LPM 180 BAR) |
14-15 GPM @3050 PSI(54 LPM 180 BAR) |
